Muffler

ENGINE TOP END 5-37

WARNING

Carburetor Holder

ENGINE TOP END

Carburetor Holder Installation

• Install the carburetor holders. The projection [A] faces upwards.

• Install the holder clamps [A] as shown being careful of the screw position and the screw head [B] direction.

Install the clamp screws horizontally. Otherwise the screws could come in contact with the vacuum ad­justing screws, resulting in an unsafe riding condi­tion.

Top

Bottom

Muffler Removal

• Remove the right side cover (see Side Cover Removal in

the Frame chapter).

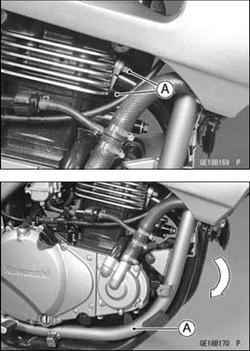

Unscrew the muffler mounting bolt and nut [A].

Remove the exhaust pipe holder nuts [A].

Take off the muffler [A].

Muffler Installation

• Replace the exhaust pipe holder gaskets with new ones.

• First, all the bolts and nuts to a snag fit.

• Secondary, tighten the exhaust pipe holder nuts evenly to avoid exhaust leaks.

• Finally, tighten the rest of the mounting bolt and nut se­curely.

• Thoroughly warm up the engine, wait until the engine cools down, and retighten all the bolts and nuts.
